Collision Detection

About

The incidence of road accidents has increased as technology and motor vehicle manufacture have advanced. Because proper emergency facilities are not available, the survival rate following an accident is extremely low. Our concept would assist in detecting an accident and determining its location, which would then be communicated to the rescue team and the rider’s emergency contacts.

Components Used

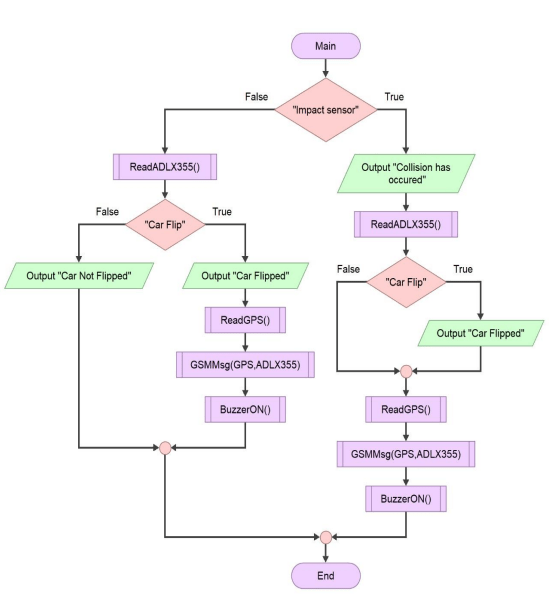

Design and Flowchart

Output with Cases

Case 1: No impact and no flip

This case represents the normal proper functioning of the vehicle. Therefore, we need not send any emergency messages so no readings from GPS are required and GSM is not used here.

Case 2:Impact occurred and no flip

This case represents the scenario when a collision happens but the automobile is not flipped. Once this happens we use GPS to find the current location, GSM to send message to emergency services.

Case 3:No impact and flip occurred

This case represents the situation when a collision does not happen but the vehicle is flipped. Once this happens we use GPS to find the current location, GSM to send message to emergency services.

Case 4:Impact and flip occurred

This case represents the situation when a collision happens and the vehicle is flipped. Once this occurs we use GPS to find the current location, GSM to send message to emergency services,
